Product description

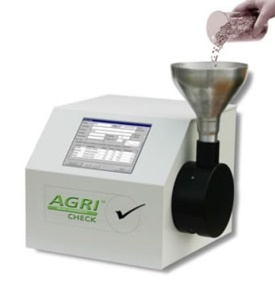

The AgriCheck™ is a cost effective solution for grain and seed analysis.
While not as versatile as the OmegAnalyzer G, it offers the same accuracy and performance in a compact package.

Typical Applications
Whole grain and seed analysis including: corn, soy, rice, wheat, barley, etc.
Universal calibrations are available for protein, moisture, fat, starch, fiber, gluten, sedimentation….
With optional top mounted reflectance mode (AgriCheck Plus): flour, meal, tea, coffee, spices, powders, pastes…
Our calibration services can develop calibrations for almost any significant component or property for your particular product.

Key Features
- Fixed pathlength cell (22mm) is capable of measuring a wide range of grains by utilizing the Bruins dynamic range extender technology
- Patented sample feed insures accurate measurements
- Dynamic Range Extender extends sample coverage with fixed pathlength
- Optional reflectance mode for bakery products and powders
- ~40 second analysis time with 10 subsamples
- Fully transferable calibrations between instruments

Reflectance – The optional top mounted reflectance port allows for measurement of fine powers such as flour, tea, coffee , spices, and other powders.
Grain density – This optional accessory integrates with the instrument to automatically provide grain density which is incorporated into the report
Temperature – Measures the temperature of the grain which is incorporated into the report

Technical parameters:

  • Dimensions: 320 X 420 X 385 mm
  • Weight: 22 kg
  • Wavelength range: 730 nm - 1100 nm
  • Light source: Halogen lamp
  • Operation: Touch screen, optional keyboard and mouse
