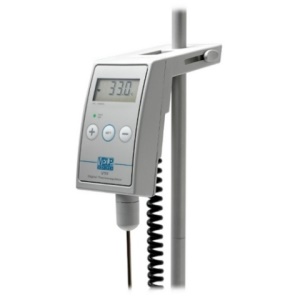

Vertex Digital Thermoregulator

The VTF uses Fuzzy Logic technology and is suitable for many applications where precise thermoregulation is required.

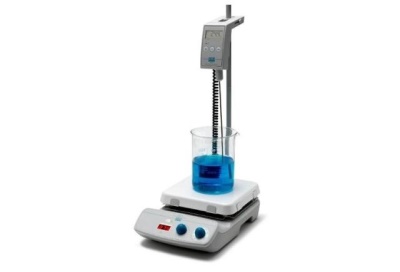

The instrument can be combined with the most common hot plate stirrers and is ready for use.
A user-friendly probe positioning system allows the operator to adjust the position of the probe easily and quickly whilst the exclusive timer means that the thermoregulation time can be pre-set.


Performance

  • Thermoregulation range: -10...+300 °C
  • Precision: ± 0.5 °C
  • Resolution: 0.2 °C
  • Working time: from 0:00 to 24:59 (h:min)
  • Remaining time reading: possible
  • Visualization of the maximum temperature reached: possible


Technical parameters:

  • Construction material: technopolymer
  • Clamping on rods: from Ø 10 to Ø 13 mm
  • Stainless steel probe type Pt 100: 250 mm lenght and Ø 3 mm
  • Display: LCD
  • Protection rating CEI EN 60529: IP 54
  • Power supply: 12 V dc
  • Weight: 0.3 Kg
  • Dimensions (WxHxD): 75x145x120 mm
PDF for download
