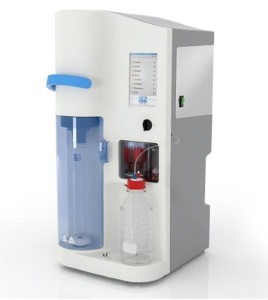

UDK 169

The UDK 169 Kjeldahl Analyzer runs automatically, after setting sodium hydroxide, dilution water and boric acid addition, the steam generation output from 10 to 100% using the innovative 6'' color touch screen.
The high-precision pumps and burette ensure constant accurate dosing of reagents and with the integrated colorimetric titrator (AOAC recommended) you will have reliable results concerning your nitrogen and protein determinations.
Automatic titration vessel cleaning provides significant advantages including reducing maintenance to a minimum.
UDK 169 is ideal for determining ammoniacal nitrogen, protein determination, nitrogen content (Kjeldahl or direct alkaline distillation), nitric nitrogen (after reduction/Devarda), phenols, volatile acids, cyanides and alcohol content.

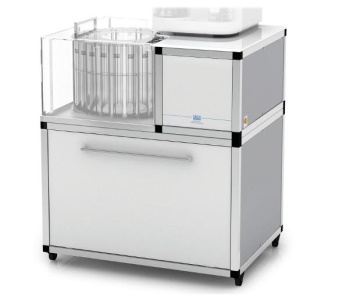

The UDK 169 can be used stand-alone, or combined with AutoKjel autosampler, for continuous operation of up to 24 samples (in 250 ml test tube, or 21 in 400 ml tube) and maximum sample throughput.
You will be supported by proven reliability, ease of use and time saving for safer and simpler activities.
A 55-program library (31 pre-defined + 24 customizable) covers the needs of any laboratory whilst the UDK 169 software offers full control of both distillation unit and autosampler.
Simple setting, instantaneous reporting capabilities and enhanced performance ensure a complete and efficient traceability system.


Technical parameters:

  • Structure: Corrosion-resistant technopolymer
  • Display: 6" color touch screen
  • Time related to start for Devarda alloy analysis: 0 – 99 min
  • Protocol library: 55 methods: 31 pre-installed + 24 customizable
  • Reproducibility (RSD): ≤ 1 %
  • Recovery: ≥ 99.5 % at nitrogen levels between 1 and 200 mg N
  • Detection limit: ≥ 0.1 mg N
  • Power: 2200 W
  • Weight: 31 kg
  • Dimensions (WxHxD): 385x780x416 mm

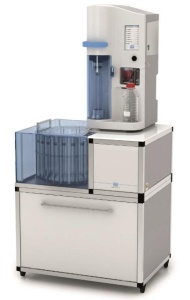

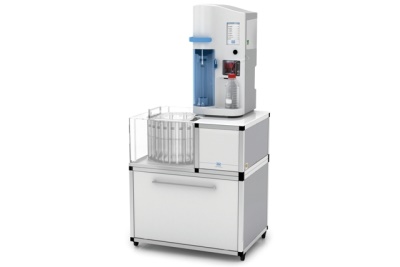

UDK 169 & AutoKjel

  • Autosampler capacity:
    24-pos. carousel, 250 ml test tubes (included with AutoKjel)
    21-pos. carousel, 400 ml test tubes (optional)
  • Power: 2250 W
  • Weight: 170 kg
  • Dimensions (WxHxD): 830x1730x640 mm
  • Tanks included


Comparison Table UDK.

PDF for download
