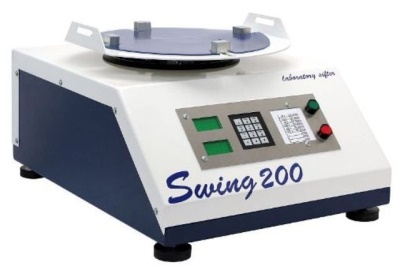

Swing 160, Swing 200

Shakers are used in research & development, quality control of raw materials, intermediate products and end products, and in production control.
SWING enables every user to select a suitable device according to his individual requirements, profile and budget.

  • simple operation, ergonomic design ¨
  • low-noise and mainterance-free
  • for dry sieving operations
  • 2 year warranty

Designed for shaking up to nine sieves.
Features a digital timer and electronic speed control, orbital motion that reduces clogging and quick action clamps to hold the sieve stack securely.
The internal counterbalance and adjustable footpads keep the shaker stationary without the need for a permanent mounting.
The motor and all mechanical parts are enclosed in a sturdy metal case.


Technical parameters:

  • Dimensions (L x W x H): 450 x 350 x 250 mm
  • Time: 30 - 999 s
  • Speed:
    Swing 160: 50 - 160 rpm/min
    Swing 200: 50 - 200 rpm/min
  • programs (time/rpm): 9 programs
  • Weight:
    Swing 160: 21,5 kg
    Swing 200: 22,5 kg
  • Input:
    Swing 160: 85 W
    Swing 200: 125 W
  • Power: 230 V/ 50 Hz ±10 %
  • Sieves: standard Ø 200 – 250 mm
  • max. load (weight sieves + sample):
    Swing 160: 3.000 kg
    Swing 200: 3.500 kg
