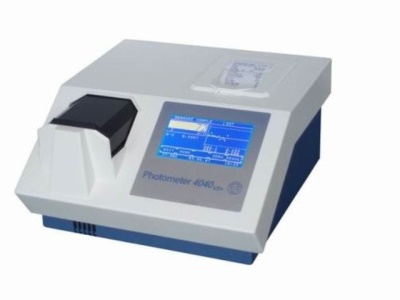

Photometer 4040 V5+

Manual single-beam filter photometer.


Technical parameters:

  • Type: Semi-automatic, single-beam filter photometer
  • Light Source: Halogen lamp – 12 V, 20 W with protection for lifetime
  • Wavelength: 340 nm – 800 nm
  • Wavelength Selection: Automatic via 9-position filter wheel:
    6 standard interference filters: 340 nm, 405 nm, 492 nm, 546 nm, 578 nm and 623 nm;
    3 positions for optional filter of choice
  • Photometric Range: 0 – 2.5 A
  • Cuvette System: Normal standard cuvettes (macro or semi-micro, disposable or special optical glass)
  • Temperature Control: ControlMeasuring cell as well as dry incubation block with 8 positions temperature controlled by electrical thermostat at 37 °C
  • Operator Interface: Touchscreen for direct functions and alphanumerical inputs
  • Data Presentation: Graphic display: white characters or symbols, blue backlight, dimension 240 * 128 dots
  • Integrated Printer: Thermal printer, 24 characters per line
  • Languages: English and French / German / Indonesian / Russian / Spanish
  • Memory:
    - General operating software can be updated by PC
    - Reagent open system with capacity for up to 231 programmable methods
    - Import of data by touchscreen or PC
    - Up to 50 non-linear calibration curves with max 20 sets of points can be stored
  • Data Logging: Up to 1000 results can be saved in the memory
  • Signal Port: Serial port for connection to an external printer and/or PC
  • Measurement Procedures:
    - Absorbance
    - End Point with factor, standard or multiple standards, with or without reagent blank and/or sample blank
    - Bichromatic end point
    - Kinetics with standard, factor or multiple standards, with or without blank
    - Fixed time with standard, factor or multiple standards, with or without reagent blank
    - Turbidimetry
    - Single, double and triple determinations
    - Curve fitting for non-linear standard curves
    - Free hemoglobin in combination with optional interference filters
  • Quality control: Up to 50 methods can be controlled with two control sera Levey Jennings plot
  • Measuring Time:
    - Kinetic: variable from 3 – 19 deltas, time per delta 4 – 255 sec in 1 sec steps
    - Fixed time: variable from 0 – 65535 sec in 1 sec steps
  • Delay Time: Programmable from 0 – 65535 sec in 1 sec steps
  • Mains Supply: Range: 100 VAC up to 264 VAC at 50/60 Hz
  • Dimensions: Length 33 cm x width 34 cm x height 18 cm
  • Weight: 5,3 kg
