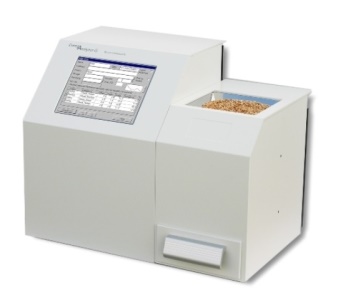

OmegAnalyzer G

The OmegAnalyzer G™ is the workhorse of Bruins Instruments NIR grain analyzers.
The “G” is a versatile instrument for grain analysis and is capable of handling grain and seed such as wheat, barley, corn, rice, soy, rapeseed and more.
This instrument offers USA NTEP certification and a host of upgrade options and accessories.

Typical Applications
Whole grain and seed analysis including: corn, soy, rice, wheat, barley, oils seeds, etc.
Universal calibrations are available for protein, moisture, fat, starch, fiber, gluten, sedimentation….
With optional top mounted reflectance mode (AgriCheck Plus): flour, tea, coffee, spices, powders, pastes…
Our calibration services can develop calibrations for almost any significant component or property for your particular product.

Key Features
- NTEP certified
- Variable pathlength from 8 to 30mm to accommodate a variety of grain and seed
- ~50 second analysis time with 16 subsamples
- Fully transferable calibrations between instruments

Options
Grain density – This optional accessory integrates with the instrument to automatically provide grain density which is incorporated into the report.
Micro Cell – For measuring flours, powders, and small amounts of grain by transmission available in pathlengths from 3-30mm.
Temperature – Measures the temperature of the grain which is incorporated into the report.


Technical parameters:

  • Dimensions: 580 x 400 x 470 mm
  • Weight: 35 kg
  • Wavelength range: 730 nm - 1100 nm
  • Light source: Halogen lamp
  • Operation: Touch screen, optional keyboard and mouse
