OCB

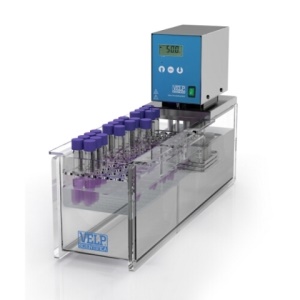

VELP Scientifica Open Circulating Bath is used for accurate temperature applications to samples placed in the circulator bath.
The circulator is designed to be combined with a bath tank.
OCB can heat up to 105 °C and can be combined with different operating accessories in order to satisfy any requirements and ensures a precise temperature control.
Thanks to the timer, the user can set the operating time.

As accessories, VELP Scientifica supplies two models of bath tanks in polycarbonate, with 5 or 7-liter capacity, able to reach 100 °C.

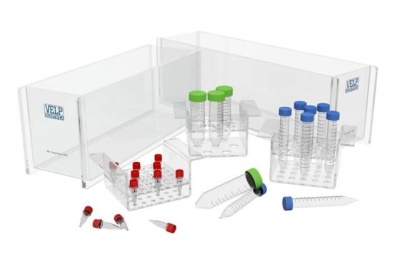

Different racks are also available: 7-position for Ø 29 mm tubes, 20-position for Ø 17 mm tubes and 36-position for Eppendorf tubes (Ø 11 mm).
The maximum capacity of the 5-liter bath tank is 2 racks, whilst the 7-liter version can accommodate up to 3 racks simultaneously.

When combining OCB with its operating accessories (bath tank and rack), this configuration provides the ideal solution to achieve accurate and highly effective water bath.

Open Circulating Baths are widely used instruments in laboratories, suitable for any application and kind of sample that involves water bath.


Technical parameters:

  • Temperature Range: Room Temperature to 105 °C
  • Temperature Precision: ±1 °C
  • Timer: 00:00 - 24:59 (hh:mm)
  • Display: LCD
  • Dimensions (WxHxD): 150x280x180 mm
  • Weight: 2.5 Kg
  • Power: 900 W


OCB Systems

  • Overall Dimensions (WxHxD):
    5-liter Bath Tank - 134x315x421 mm
    7-liter Bath Tank - 134x315x521 mm
  • Overall Weight:
    5-liter Bath Tank - 4.2 kg (9.2 lb)
    7-liter Bath Tank - 4.5 kg (9.9 lb)

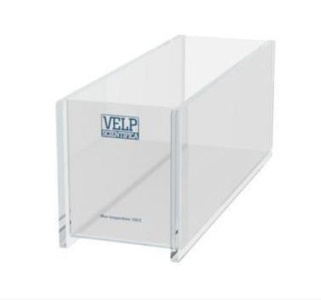

Bath tanks

  • Structure: Polycarbonate
  • Models: 5-liter Bath Tank and 7-liter Bath Tank
  • Max. Temperature: 100 °C / 212 °F
  • External Dimensions (WxHxD):
    5-liter Bath Tank - 134x163x421 mm
    7-liter Bath Tank - 134x163x521 mm
  • Weight:
    5-liter Bath Tank - 1.7 kg
    7-liter Bath Tank - 2.0 kg
