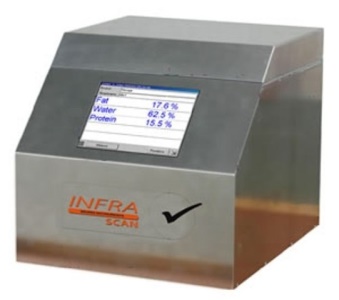

InfraScan

The InfraScan™ is a research quality NIR reflectance instrument designed for developing calibrations or for general research.
The instrument is also available in an extended spectral range configuration which extends coverage into the visible spectrum and covers the 380 – 1100nm range.
The system can be run from the built in touch screen or by using an external mouse, keyboard and monitor.
The powerful Omega-Pro™ software is included which provides a multitude of spectral manipulation and calculation features.

Typical Applications
Powders, liquids, pastes, color measurements…
Our calibration services can develop calibrations for almost any significant component or property for your particular product.

Key Features
Includes full featured Omega-Pro analysis software as well as Omega Predict™ analyzer software
Choice of spectra range options to cover visible or NIR
Fully transferable calibrations between instruments
Single channel double beam operation allows use as a normal laboratory spectrophotometer with the build omega Pro software

Options
Spectral range options (380-1100 nm or 1350 – 2550 nm).


Technical parameters:

  • Dimensions: 370 x 460 x 370 mm
  • Weight: 28 kg
  • Wavelength range :  Standard: 1350-2550 nm · Optional: 380-1100 nm · .5 nm scan increment
  • Sample Presentation:  magnetically controlled sample dishes for full automated measurements
