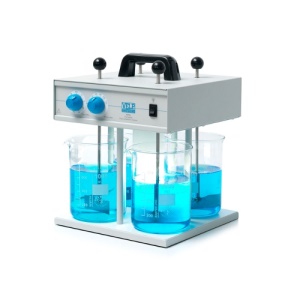

FP4 - Portable Flocculator

The FP4 is a multiple stirrers with reproducible stirring speeds allowing standard conditions to be met during analysis, a basic requirement in order to obtain reliable and repeatable results.
It is a portable model with four stirring places, designed to be used on-site, as it can be powered by a battery or a car cigarette lighter.
FP4 has been manufactured with a strong metallic frame with an epoxy painting purposely studied to offer a high protection degree against chemical and mechanical corrosion.
The stainless steel stirring rods are adjustable in height by a self blocking chuck, whilst the anti-skid base ensures improved stability.
Rotation speed is controlled by a gear motor powered by direct current controlled electronically by a microprocessor.

From the front panel it’s possible to select the stirring speed through selectors (20-40-50-100-200 rpm) and the operating time for unattended operation.
The four stirring points are arranged in a circle around a light to offer an easier control of the flocculation process.

The state-of-the-art technology ensures maximum convenience and makes the unit maintenance-free.


Performance

  • Timer: from 0 to 30 minutes (or continuous)
  • Electronic speed control: 20 - 40 - 50 - 100 - 200 rpm


Technical parameters:

  • Construction material: epoxy painted metal structure
  • Disconnectable central light
  • Stainless steel stirring rods: adjustable in height by a self blocking chuck
  • DC gear motor
  • Monoselector: same speed for each rod
  • Number of stirring rods: 4
  • Power: 6 W
  • Power supply: 100 - 240 V / 50-60 Hz
  • Dimensions (WxHxD): 250x320x250 mm
  • Weight: 4,8 Kg
