DKL

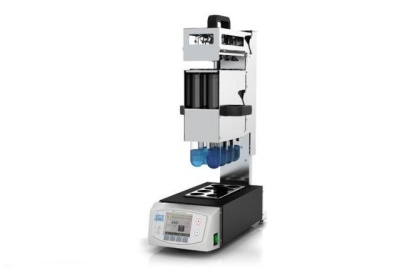

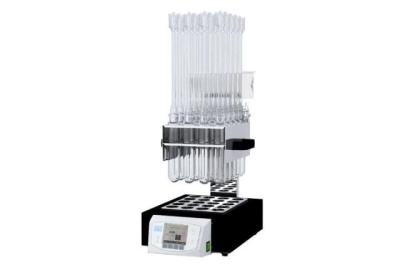

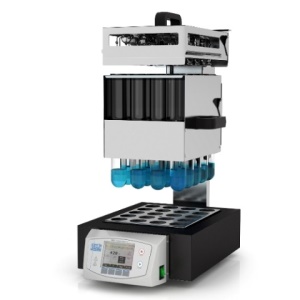

The fully auto DKL Kjeldahl digestion unit series is the ideal solution for nitrogen content determination that comes as a ready to use package, including an aluminum heating block (that offers excellent temperature homogeneity, precision and accuracy), an auto lift and auto suction cap, test tubes, sample rack and drip tray.

The innovative DKL incorporates the revolutionary TEMS™ technology for unprecedented savings in terms of Time, Energy - as much as 35%, Money and Space.

DKL Series offers an excellent test precision and repeatability and is available in the following configurations:
DKL 8 (8-position with 250 ml tubes, Ø 42 mm)
DKL 12 (12-position with 250/400 ml tubes, Ø 42 mm)
DKL 20 (20-position with 250 ml tubes, Ø 42 mm)
DKL 42/26 (42-position with 100 ml tubes, Ø 26 mm)


Performance:

  • Temperature range: Ambient to 450 °C / 842 °F
  • Temperature Calibration: Automatic
  • Stability of the heating block temperature: ± 0,5 °C
  • Precision of the heating block temperature: ± 0,5 °C
  • Digestion time range: 1 to 999 minutes
  • Time selection: 1 minute steps
  • Program library: 54 methods: 30 pre-installed + 24 user-programmable
  • Selectable ramps: 4 ramps per program


Technical parameters:

  • Construction material: Stainless steel with chemical resistant coating
  • Models:
    DKL 8 8-position for 250 ml test tubes (Ø 42 mm)
    DKL 12 12-position for 250/400 ml test tubes (Ø 42 mm)
    DKL 20 20-position for 250 ml test tubes (Ø 42 mm)
    DKL 42/26 42-position for 100 ml test tubes (Ø 26 mm)
  • Set temperature: Digital readout in °C or °F or K
  • Selectable language: UK, I, E, F, RUS, CN + Additional Customizable (downloadable)
  • Power:
    DKL 8 1150 W
    DKL 12 1500 W
    DKL 20 2300 W
    DKL 42/26 2300 W
  • Weight:
    DKL 8 19.7 kg (43.5 lb)
    DKL 12 23.3 kg (51.4 lb)
    DKL 20 30.8 kg (68.0 lb)
    DKL 42/26 33.5 kg (74.0 lb)
  • Dimensions (WxHxD):
    DKL 8 210x690x540 mm (8.3x27.2x21.3 in)
    DKL 12 266x690x540 mm (10.5x27.2x21.3 in)
    DKL 20 322x690x584 mm (12.7x27.2x23.0 in)
    DKL 42/26 322x690x584 mm (12.7x27.2x23.0 in)


Comparison Table DKL.

PDF for download
