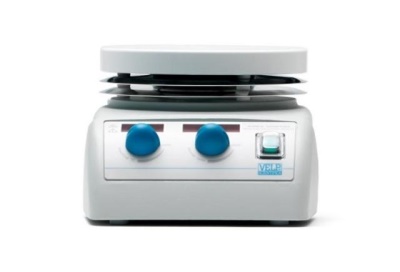

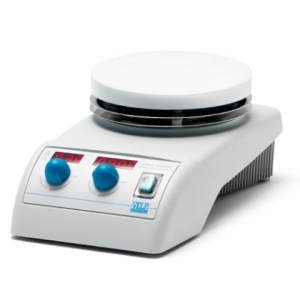

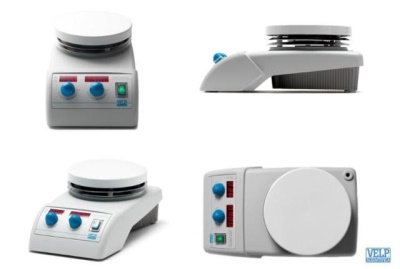

AREX Digital

Performance

  • Electronic speed regulation: up to 1500 rpm
  • Counter-reaction: constant speed
  • Electronic temperature regulation: from room temp. to 370°C
  • Overtemperature safety circuit
  • "Hot Plate Warning" whenever the top plate temperature is over 50 °C

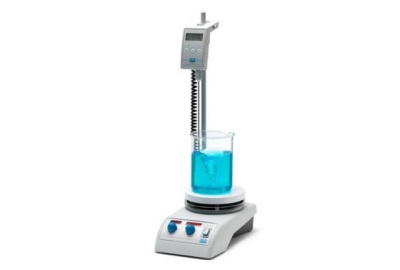

  • Sample thermoregulation: ± 0.5 °C by using the Vertex thermoregulator (AREX Digital PRO);
    ± 1.0 °C by using Pt100
  • Stirring volume (H2O): up to 20 liters
  • Stirring system: high-power driving magnet type ''PCM'' operated by a mono-phase motor for continuous operation


Technical parameters:

  • Construction material: epoxy painted aluminium structure
  • Heating plate: aluminum alloy coated with ceramic coating
  • Heating plate diameter: 155 mm
  • Digital display: one for speed, one for temperature
  • Pt100 connection: provided, both for AREX Digital and AREX Digital PRO
  • Vertex connection: provided, only for AREX Digital PRO
  • Protection rating CEI EN 60529: IP 42
  • Power: 630 W
  • Weight: 2,6 Kg
  • Dimension (WxHxD): 165x115x280 mm


Comparison Table ARE / AREX.
